VPN configuration on Windows 10

This step by step guid shows how to install an configure OpenVPN Client Connect on Windows 10

    1. Donwload file infnct-aai.ovpn (on some browsers you may need to right mouse click and select "Save link with name")
    2. Download software: https://openvpn.net/client-connect-vpn-for-windows/

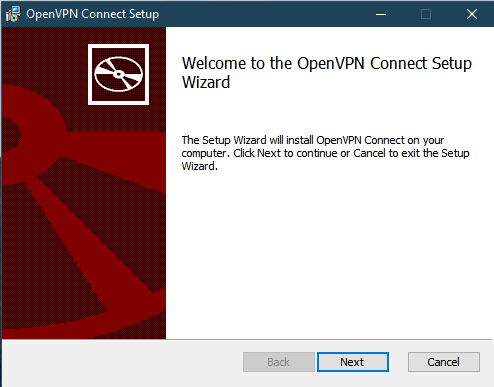

    3. Double click on the downloaded file at step 2. to start installationvpncw01

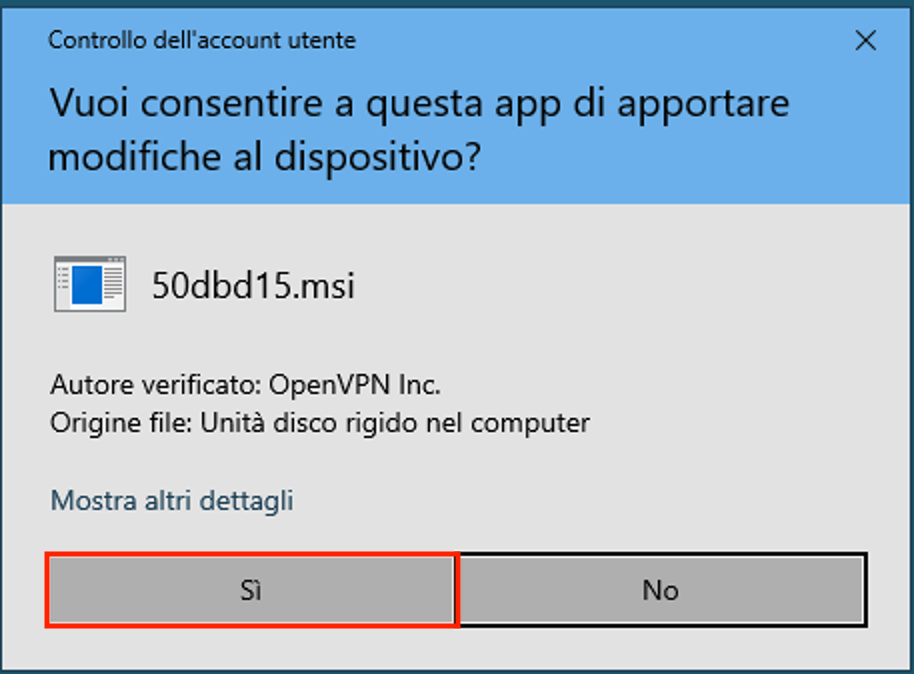

    4. Agree the license agreement and confirm you want to install app
      vpncw05

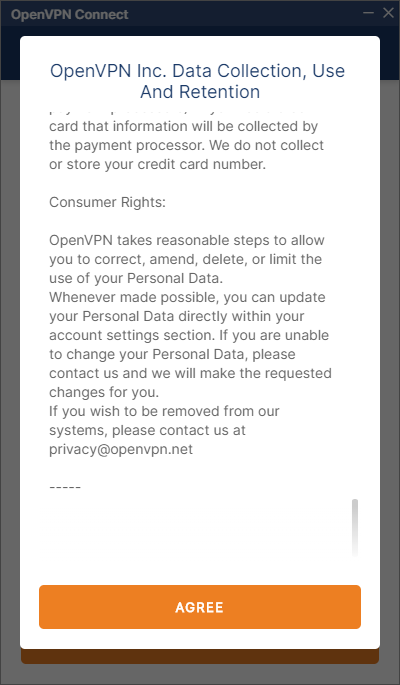

    5. At the end of installation agree the Data Collection, Use and Retention vpncw07

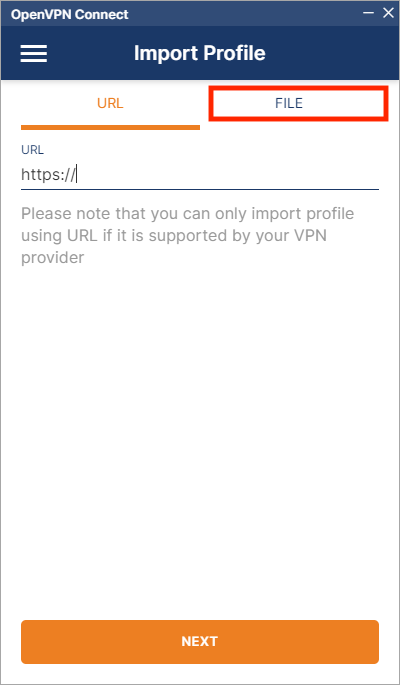

    6. Now installation asks to set a profile, click on FILE to import the configurationvpncw09

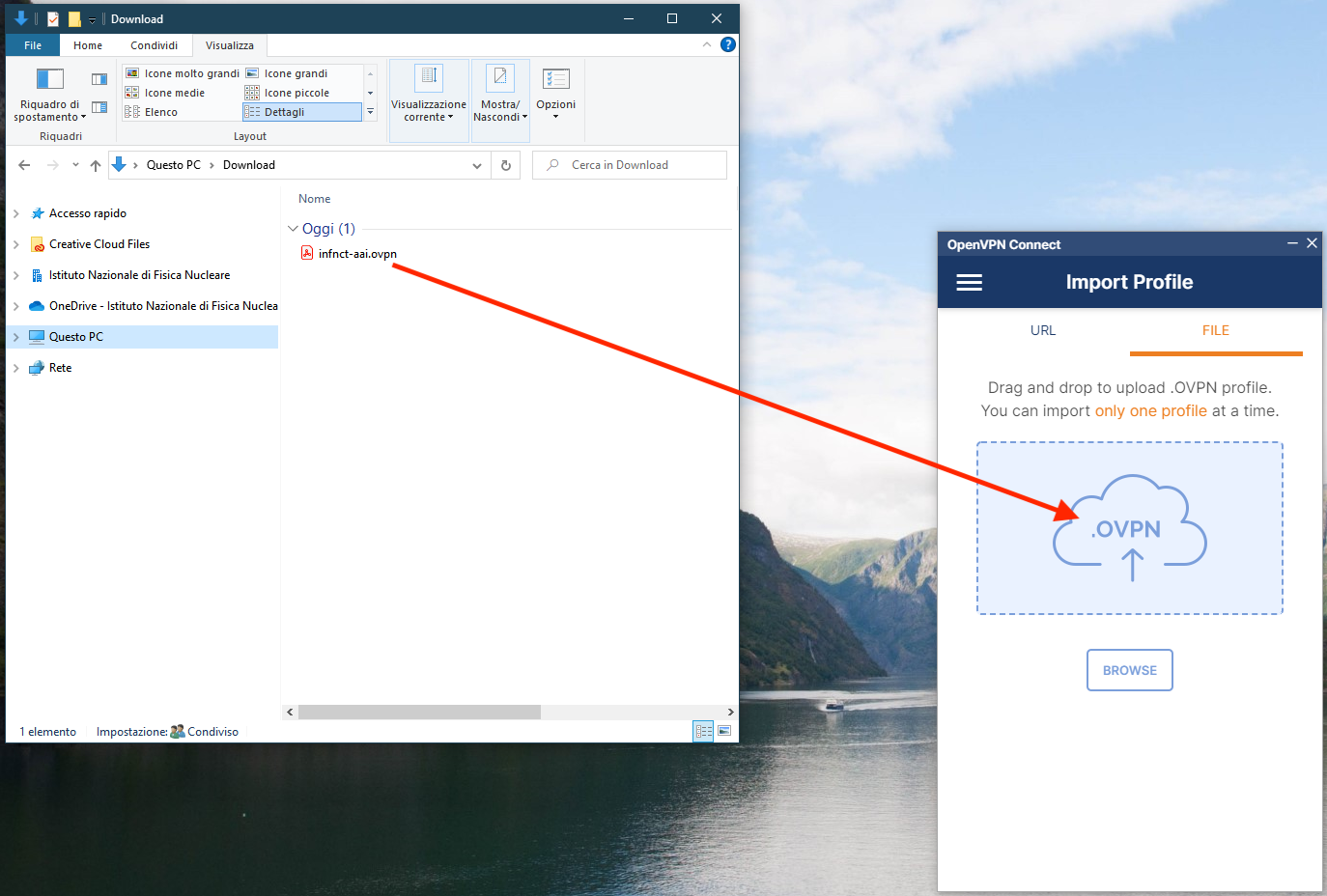

    7. Drag and drop file downloaded at step 1.vpncw10

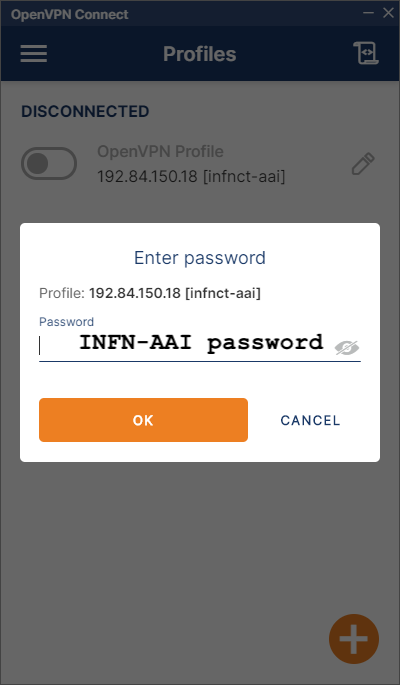

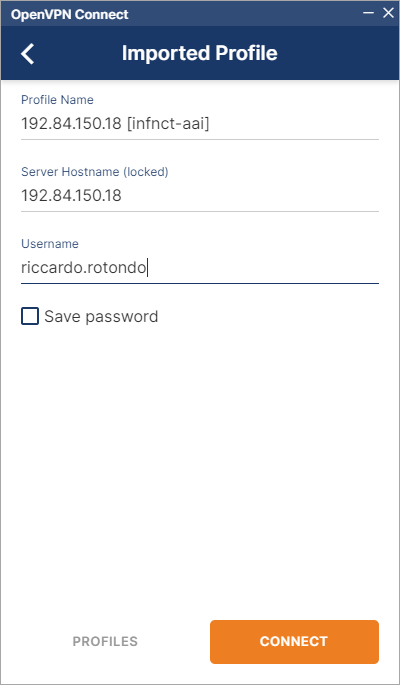

    8. Fill with your credential: name.surname and INFN-AAI passwordvpncw11vpncw12_02

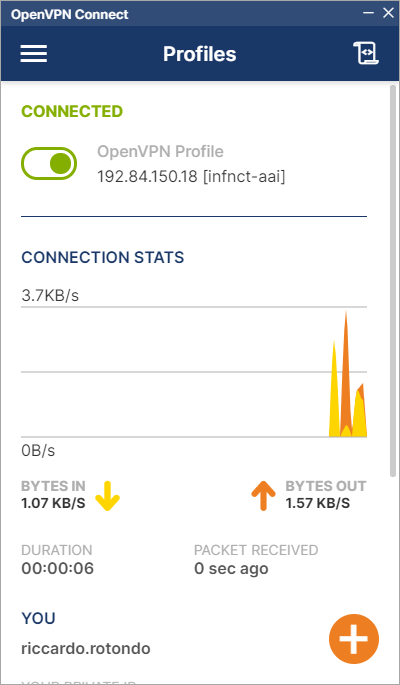

    9. Once connection is established, app shows statistics vpncw13
    10. Click on the green switch to disconnect
    11. If you close this window, you can open it using icon in system trayvpncw14
